536nm激光器

LL536-500mw

           LD PUMPED ALL-SOLID-STATE GREEN LASER AT 536nm All solid state 536nm green laser is made features of high output  power stability, good beam profile, ultra compact, long lifetime, cost-effectiveness and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.

Part number	LL536-500mw
Wavelength (nm)	536± 1
Operating mode	CW
Output power (mW)	200-500
Power stability (rms, over 4 hours)	<5%, <3%
Transverse mode	TEM00
M2 factor	< 1.5
Beam diameter at the aperture ( 1/e2, mm)	<2.0
Beam divergence, full angle (mrad)	< 1.5
Polarization Ratio	> 100:1, (Horizontal or Vertical Optional)
Warm-up time (minutes)	<5
Pointing stability after warm-up (mrad)	<0.05

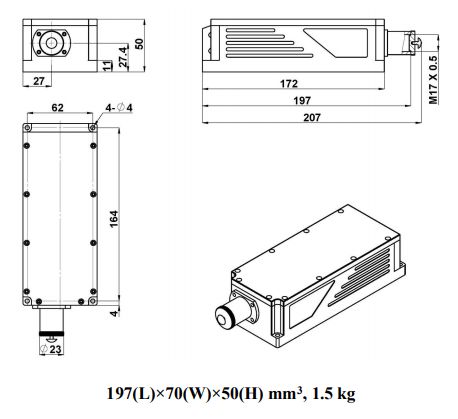

Beam height from base plate (mm)	27.4
Operating Temperature (°C)	10-35
Modulation option	TTL on/off, 1Hz- 1kHz, 1kHz- 10kHz,
Power supply (90-264VAC)	PSU-H-LED/
Expected lifetime (hours)	10000
Warranty	1 year
